OSN 1800V is one of Huawei OTN Key Products and Very Popular in Core and Large Capacity Applications.Persian Ertebat is a First Company in Iran that Has This Product always in Their Stock and Provide Technical Support for That.we Deliver it to our Customers Just in one Day After Order !

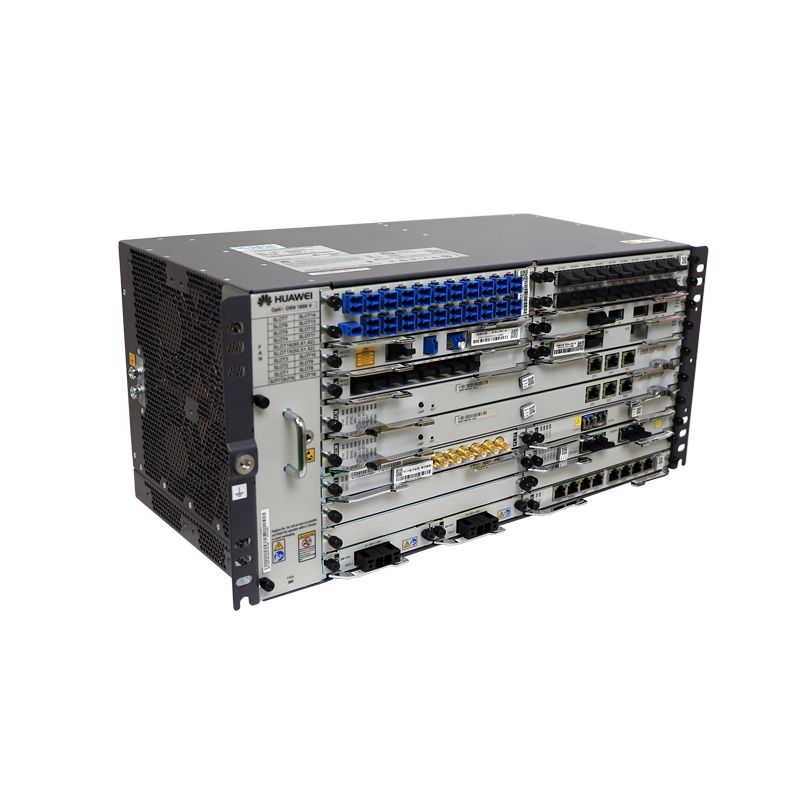

1-Model: OSN 1800V (OTN Series)

2-Manufacture:Huawei

3-Number of Wavelengthes: 40 (C-Band)

4-Capacity / Wavelength: 100GB

5-PWR:DC-48+DC-48/AC+AC

6-Ttafic Slots:System has 14 Empty Slots For Trafic Cards and 2 Slotes for Control Card (UXCM/1+1)

7-ODUK Cross Capacity :700GB/s

8-Packet Cross Capaity :700GB/s

9-Maximum Chassis Capacity : 14 * 50GB/s

10-System Popular Cards:LDX (Convert 2*Any Rate to 2*OTU2),ELOM (Convert 8*any rate to 1* OTU2),X40 (40*Wavelength Mux/Dmux Card),MD8(8*Channel OADM Card),OBU (Booster Card-23 db),FIU (Fiber Port uni-add OSC to main Signal),PL1(16E1 Card),OLP (Line Protection Card) ,EX4 (4*10GB Card) , EC1 (1*100GB Card ) ,...

11-NMS Software:U2000

12-SFP/SFP+/XF: All Optical Modules Deliver with Cards to Customers without Any Additional Cost.

13-Price : Contact us
